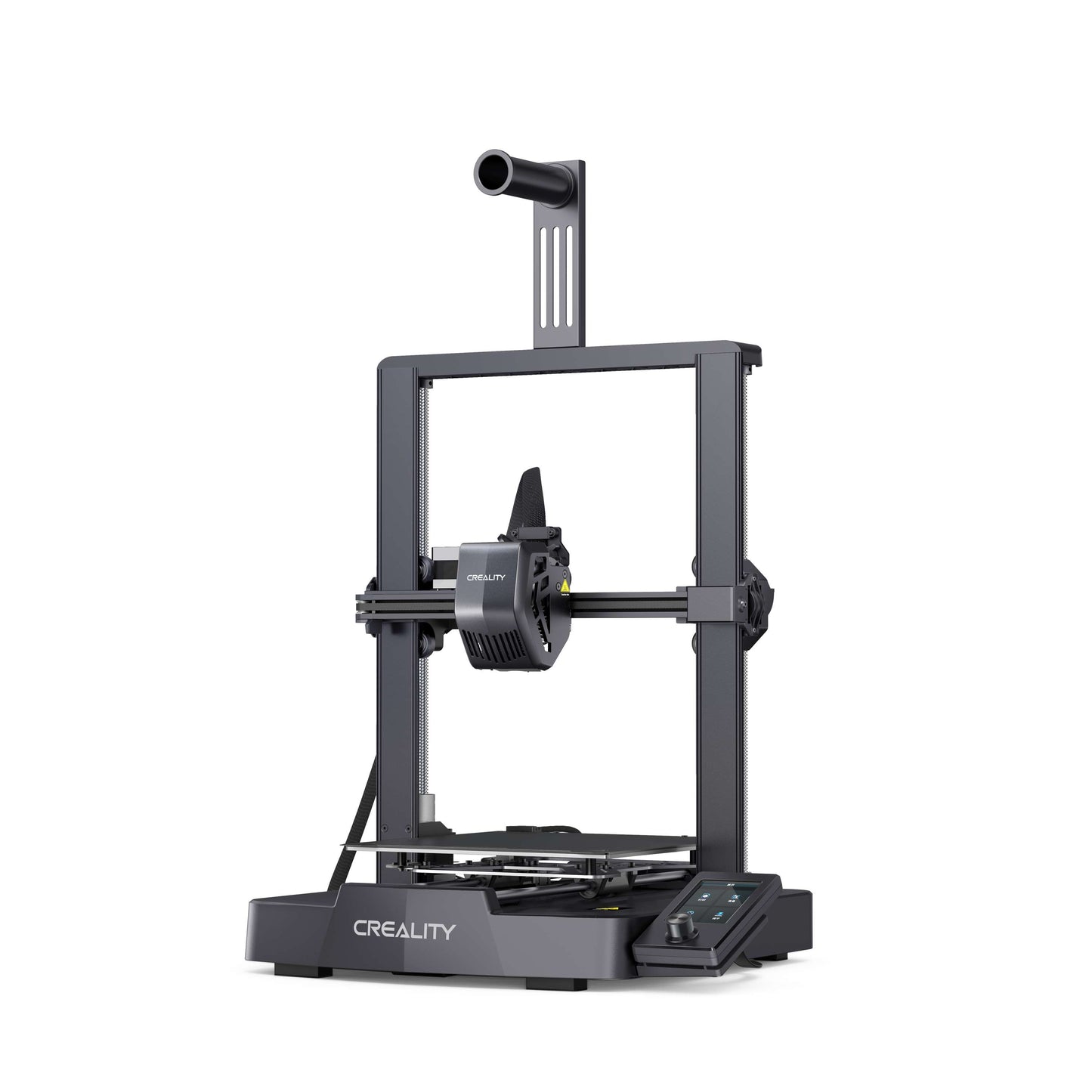

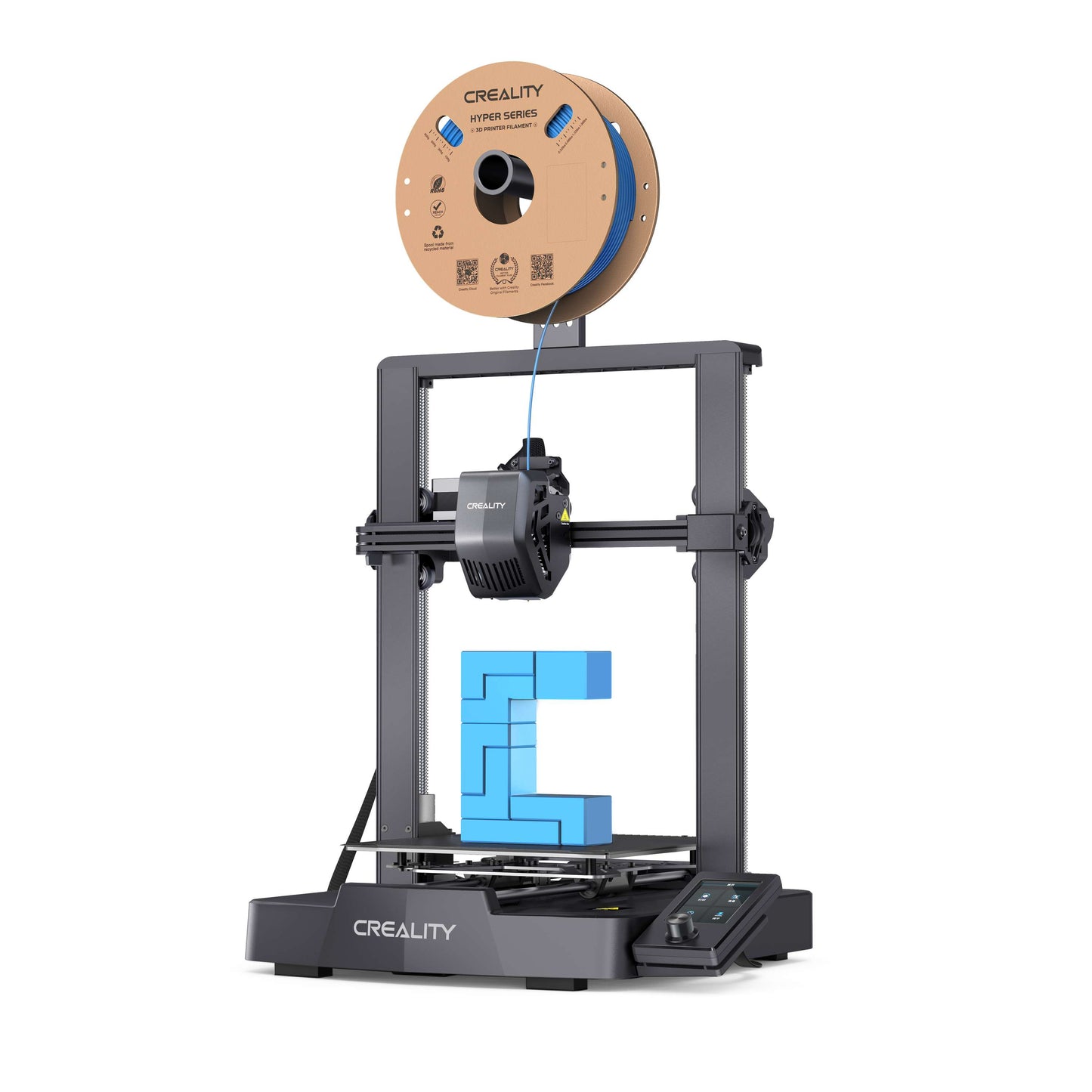

Creality Ender-3 V3 SE
Creality Ender-3 V3 SE
Creality's latest addition to the Ender 3 family is the V3 SE. With a bed size of 220x220x250 mm and an average print speed of 180 mm/s (max 250 mm/s), you can quickly print your models with good results. The machine is equipped with a CR-Touch Auto Leveling Sensor and a wire strain gauge that makes leveling and calibrating the Z-offset a breeze. You'll be up and running in no time.
- Screws for dual Z axes
- 250mm/s Print speed
- Linear axes for Y axis
- Sprite direct extruder
- CR-Touch and wire strain gauge for a perfect first layer
20+ in stock
Couldn't load pickup availability
Share
Ender-3 V3 SE
Creality 3D's latest addition to the Ender 3 family is the V3 SE. With a bed size of 220x220x250 mm and an average print speed of 180 mm/s (max 250 mm/s), you can quickly print your models with good results. The machine is equipped with a CR-Touch Auto Leveling Sensor and a wire strain gauge that makes leveling and calibrating the Z-offset a breeze. You'll be up and running in no time.
In addition to these features, Creality has also added a pair of linear axles to the Y-axis instead of the traditional roller wheels for a more stable and long-lasting motion system. With the Sprite Direct Extruder, you can print a variety of materials, including the popular PLA, PET-G and TPU. As a continuation of previous models, you'll also find twin lead screws for the Z-axis that synchronize with a GT2 timing belt for increased accuracy and stability.
Technical Specifications
|
Construction and technical details |
|
|
Usable nozzles Typ |
MK8 |
|
Usable wire diameter |
1.75 mm |
|
Temperature in the nozzle Max |
260 ºC |
|
Open filament system |
Yes |
|
Extruder Type |
Direct drive |
|
Recommended print speed Max |
250 mm/s ( |
|
Print area |
220mm x 220mm x 250mm |
|
Building plate temperature max. |
100 ºC |
|
The surface of the building plate |
Adhesive sheet |
|
The material of the building plate |
Flexible steel plate |
|
Bracket for building plate |
Magnetic |
|
System for setting the building plate |
Automatic - CRTouch |
|
The construction chamber during the process |
Open |
|
Extruder Quantity |
1 |
|
Installation space/requirements |
|
|
Total mass |
349mm x 364mm x 490mm |
|
Total weight |
7.12 kg |
|
Maximum power consumption |
350W |
|
Voltage |
AC: 100 V240 V (50-60 Hz) |
|
Equipment |
|
|
Hepa filter |
No |
|
Filament Sensor - End |
Yes |
|
Fail safe in case of power failure |
Yes |
|
Touch screen |
Yes |
|
Connection |
|
|
Wi-Fi |
No |
|
Accuracy |
|
|
Stock height |
0.1 - 0.35 mm |
|
Resolution |
0.1 mm |
|
Delivery |
|
|
Delivery box |
575mm x 390mm x 235mm |
|
Transport weight |
9.14 kg |
