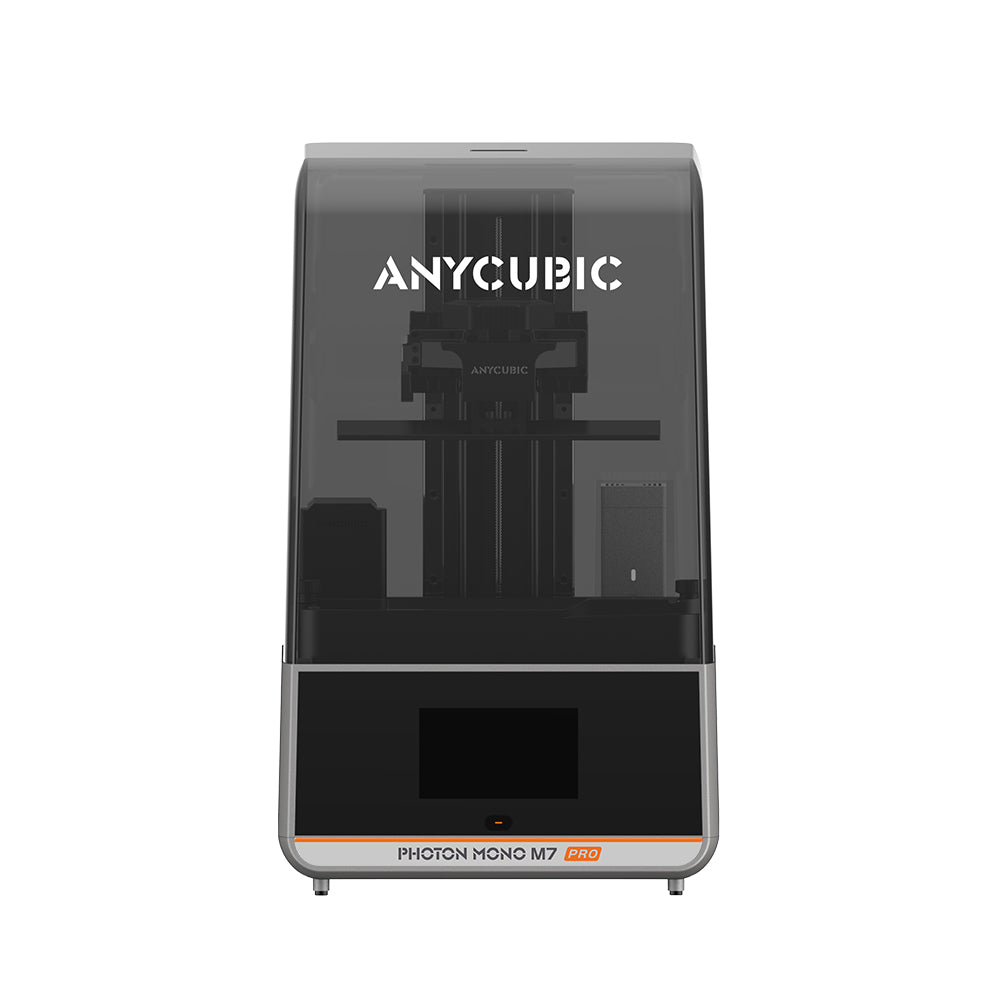

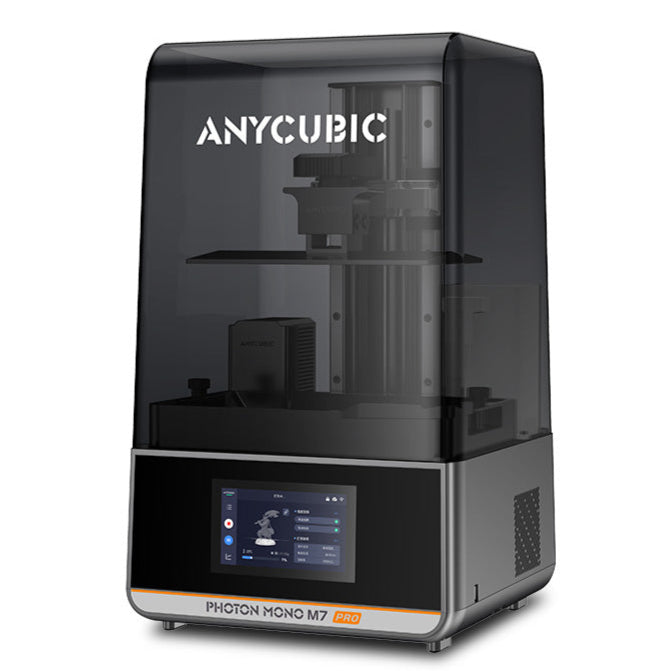

Anycubic Photon Mono M7 Pro
Anycubic Photon Mono M7 Pro
The Photon Mono M7 Pro boasts remarkable print speeds of up to 130mm/h for standard resin and 170mm/h with high-speed resin, while maintaining a precise layer height of 0.1mm. This performance is powered by the advanced 10.1-inch, 14K high-precision optical system, ensuring outstanding detail in every print.
- 223 x 126 x 230 mm Print volume
- Auto-Adaptive Technology Control Heating
- Automatic Resin filling
- Intelligent Workflow-assist printing
Couldn't load pickup availability
Share


Anycubic Photon Mono M7 Pro
The Photon Mono M7 Pro boasts remarkable print speeds of up to 130mm/h for standard resin and 170mm/h with high-speed resin, while maintaining a precise layer height of 0.1mm. This performance is powered by the advanced 10.1-inch, 14K high-precision optical system, ensuring outstanding detail in every print.
Full speed ahead
The Photon Mono M7 Pro can reach speeds of up to 130 mm/h for standard prints and up to 170 mm/h for high-speed prints with 0.1 mm layer height, making it one of the fastest resin printers on the market.
Uninterrupted, unstoppable - Resin Autofill
Using an automated resin refill unit, the printer automatically refills the vat with new resin when needed, and it also helps empty the resin from the vat after printing is complete.
Dynamic temperature control for the resin tank
Auto-Adaptive Technology Control Heating automates the heating of the vat and resin, eliminating the hassle of managing settings and making the process of printing with resin much easier and more consistent.
14K High precision optical system
The 10.1", 14K (13320 * 5120) high-precision optical system makes printing fast and at the same time highly detailed to ensure the best possible printing results.
LightTurbo 3.0
The COB light source system, combined with Fresnel lenses and forward-facing reflectors, The light uniformity on the screen is ≥90% and achieves model accuracy error of ±0.01-0.05mm
Leveling free
Automatic precise leveling and zeroing of the device, eliminating the need for manual leveling operations.
Complementary Anycubic AirPure
Built-in activated carbon filter and high-performance ventilation motor; the purification efficiency of VOC content reaches up to 99% in a single operation; effectively absorbs and filters odors near the printing source, providing a cleaner and more reassuring user experience.
Technical Specifications
Construction and technical details |
|
Resin Display Type |
Monochrome LCD |
Resin Display resolution X |
13320 pixels |
Resin Display Resolution Y |
5120 pixels |
Recommended maximum print speed |
46800 mm/h (Depends on material.) |
Construction volume |
223mm x 126mm x 230mm |
Installation space/requirements |
|
Overall dimensions |
312mm x 315mm x 520mm |
Total weight |
12.8 kg |
Voltage |
AC: V |
Equipment |
|
Hepa filter |
Yes |
Door lock during printing |
Yes |
Touchscreen |
Yes |
Connection |
|
USB port |
Yes |
WLAN |
Yes |
Cloud control |
Yes |
Accuracy |
|
Bearing height |
0.01 - 0.15mm |
Delivery |
|
Delivery box |
620mm x 395mm x 395mm |
