Anycubic Photon Mono M7
Anycubic Photon Mono M7

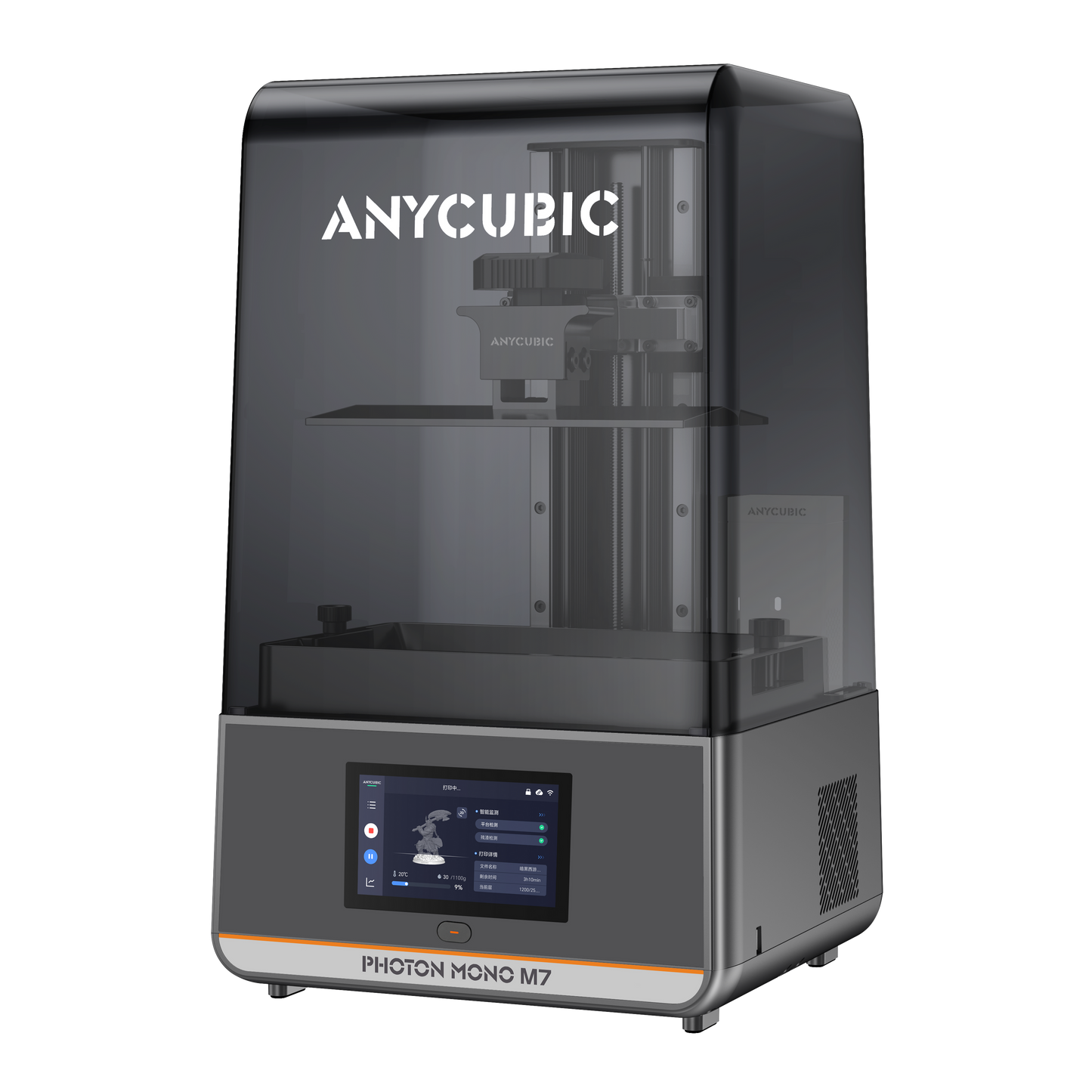

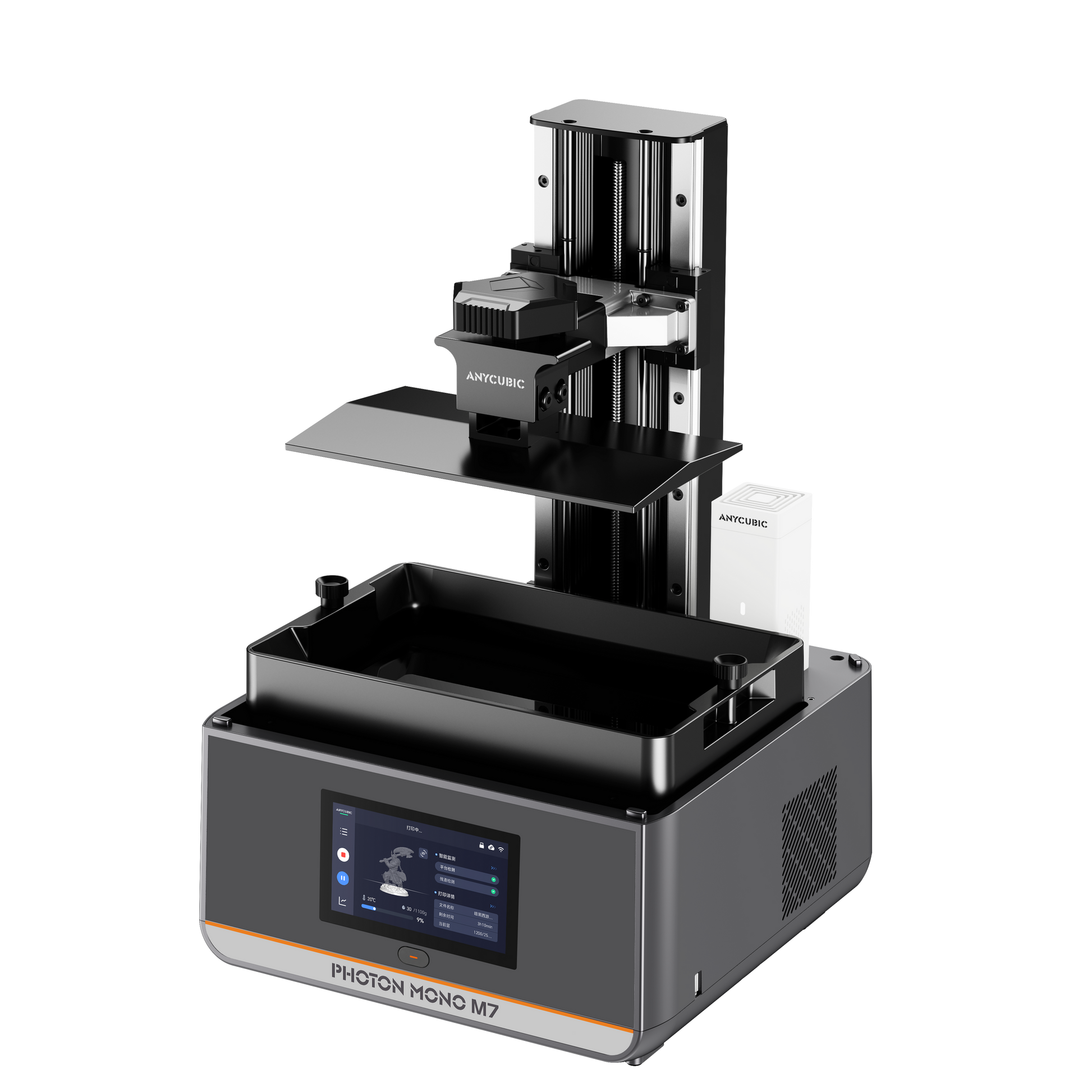

The Anycubic Photon Mono M7 is a state-of-the-art resin printer with an incredible 14K resolution (13,312 x 5,120 pixels) on a monochrome LCD screen. This enables ultra-fine details and outstanding print quality. The printer features a LightTurbo 3.0 system with a powerful COB light source that provides even and efficient curing across the entire build platform. With a build volume of 223 x 126 x 230 mm, automatic bed leveling and smart features such as print error detection, the Photon Mono M7 is designed for both precision and reliability. It also comes with an AirPure air purifier, ensuring a cleaner printing environment.
- 90mm/h even for standard resins
- 223 x 126 x 230 mm Build volume
- Intelligent printing using workflow
20+ in stock
Share



Photon Mono M7
The Anycubic Photon Mono M7 is a state-of-the-art resin printer with an incredible 14K resolution (13,312 x 5,120 pixels) on a monochrome LCD screen. This enables ultra-fine details and outstanding print quality. The printer features a LightTurbo 3.0 system with a powerful COB light source that provides even and efficient curing across the entire build platform. With a build volume of 223 x 126 x 230 mm, automatic bed leveling and smart features such as print error detection, the Photon Mono M7 is designed for both precision and reliability. It also comes with an AirPure air purifier, ensuring a cleaner printing environment.
Lighting system Light Turbo 3.0 and 14K display
The resin printer uses the new Light Turbo 3.0 lighting system in combination with a high-resolution 14K display. The result is better overall light source performance and faster curing of the printed model layers.
The 14K display has a resolution of 13312 x 5120 pixels and an XY resolution of 16.8 x 24.8 µm. This allows you to print detailed and complex structures with maximum precision and sharp details, as well as a beautiful surface quality.
COB light source with forward-facing reflectors + Fresnel lenses
The Photon Mono M7 uses a new optical design solution consisting of a COB light source with forward-facing reflectors and Fresnel lenses. The technology ensures a uniform light intensity within an angle of ≤ 3° and a light uniformity of ≥ 90%.
A special light-off compensation algorithm can dynamically adjust the light-off time of the light source under the display to the exposure area of the print model.
Automatic level control
The resin printer is ready for immediate use. The unit is automatically and precisely leveled to "zero", eliminating the need for manual leveling.
Automatic intelligent detection features
With seven intelligent detection functions and automatic start-up inspections, the printing process is streamlined, reducing the risk of human error and providing a smooth collaborative experience in light-curing 3D printing.
Intelligent assistance systems
- Detection of failed printing: When problems such as layer gaps, bottom runout, or detachment occur during the printing process, printing is automatically paused and a pop-up reminder is issued, facilitating quick adjustment of printing tasks and thus avoiding resin and time waste.
- Release film life management: Automatically monitor the number of times the release film is peeled off. When the number reaches 45,000, users are reminded to replace it immediately to avoid subsequent printing failures due to reduced release film performance.
- Resin Tray Residue Detection: Detects solid residue inside the resin tray and immediately alerts the user with a pop-up window to avoid screen damage due to manual inspection mistakes.
- Resin level detection: When the resin level in the container is below the required amount, the user is reminded to refill it immediately.
- Platform installation status detection: Quickly assess the platform installation status. In case of deviations, a pop-up reminder is displayed to prompt timely adjustments.
- Component connection status detection: Automatically check the status of release film and automatic resin filling unit.
- Real-time sensing curves in printing status: Real-time presentation and monitoring of the printing area and release force data for each model layer during printing.
AirPure air purifier included
The Anycubic AirPure air purifier has a built-in, easily replaceable activated carbon filter that can effectively absorb and filter up to 99% of VOCs and unpleasant resin odors.
Simplified slicing process
- The slicing tool supports slicing models and storing file designs anytime, anywhere
- Thanks to a special algorithm (vector slicing), a sliced model file is compressed to reduce the memory required for storage on the device when the model is transferred.
- With built-in multitasking, you can monitor the printing status of multiple printers in real time and manage them as needed.
- The Auto Repair feature shows any defects in the model file and how many, and automatically repairs them so you can complete the printing process successfully.
In the box:
- 1 x Photon Mono M7
- 1 x build plate
- 1 x resin container
- 1 x User Manual
- 1 x screen protector kit
- 1 x leveling paper
- 1 x air purifier
- 1 x protective equipment
- 5 x funnels
- 2 x scraper
- 1 x Hex Key Set
- 1 x USB flash drive
- 1 x WiFi antenna
- 1 x power cable
